When I talk with overseas buyers about excavator undercarriage parts, one of the most common questions I receive is: “How does an excavator chain track work?”
Many customers know they need to replace a track chain, track roller, or sprocket, but they do not always understand how these components work together. Understanding the excavator track system helps buyers choose the right replacement parts, reduce maintenance costs, and improve machine service life.
At Siderwin, we manufacture excavator undercarriage parts, including track chains, track link assemblies, track rollers, carrier rollers, idlers, sprockets, and track adjuster assemblies. Based on our manufacturing and export experience, I will explain how excavator chain tracks work and what buyers should consider when purchasing replacement parts.
How Does an Excavator Chain Track Work?
An excavator chain track works by transferring power from the hydraulic travel motor to the track chain through the sprocket. The rotating sprocket drives the track links, while rollers support the machine weight and the idler controls track tension. This system allows crawler excavators to move smoothly on different terrains.
An excavator does not use traditional wheels. Instead, it uses a crawler undercarriage system that distributes the machine weight over a larger contact area. This design gives excavators better stability, traction, and performance on soft ground, mud, rocks, and uneven construction sites.
The complete track system includes several important excavator undercarriage parts:
- Track chain
- Track shoes
- Sprocket
- Front idler
- Track rollers
- Carrier rollers
- Track adjuster assembly
- Recoil spring
Each component has a specific function. If one part wears excessively, it can affect the entire undercarriage system.

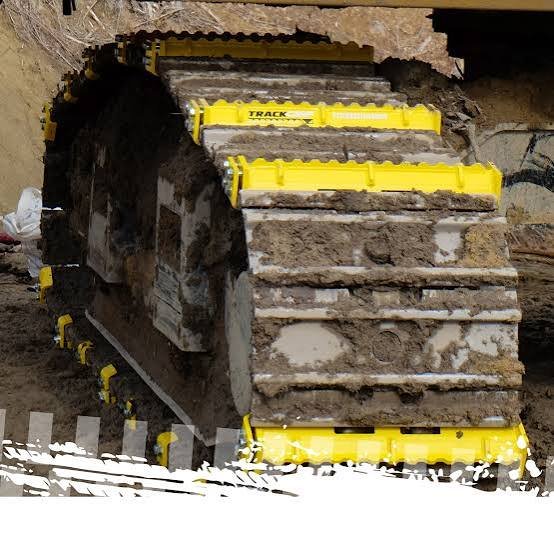

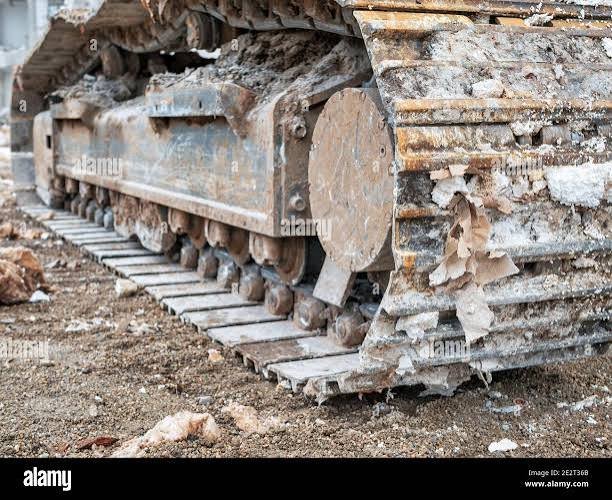

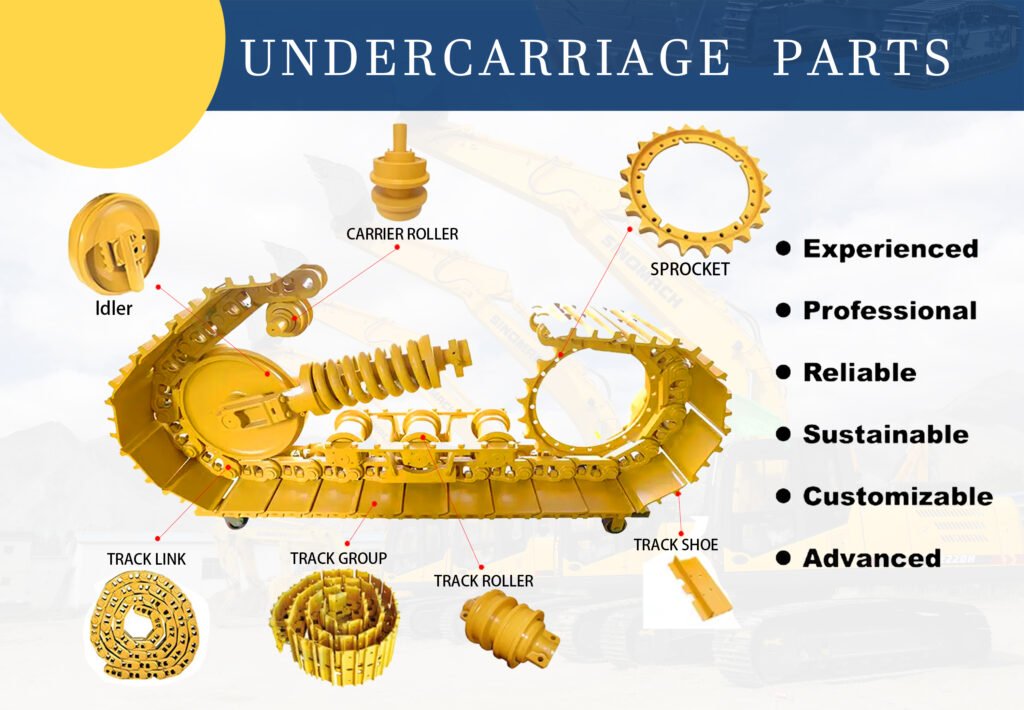

Image suggestion: Excavator undercarriage structure showing track chain, rollers, sprocket, and idler.
What Are the Main Components of an Excavator Track System?
1. Excavator Track Chain
The excavator track chain is the main moving component of the undercarriage system.
A track chain consists of connected track links, pins, and bushings. The links form a continuous chain that moves around the sprocket and idler.
During operation:
- The hydraulic motor provides driving power.
- The sprocket transfers power to the track chain.
- The chain rotates around the undercarriage.
- The track shoes contact the ground and push the machine forward or backward.
The track chain must handle:
- Heavy machine weight
- Continuous impact loads
- Abrasive working conditions
- High pulling force
For this reason, high-quality track chains usually require:
- Forged alloy steel
- Precise machining
- Advanced heat treatment
- Proper hardness control
At Siderwin, we focus on manufacturing track chains with strong wear resistance and stable performance for excavators, bulldozers, and mining equipment.
2. Excavator Sprocket
The sprocket is the driving wheel of the crawler system.
The hydraulic travel motor rotates the sprocket. The sprocket teeth engage with the track chain bushings and pull the chain around the undercarriage.
A worn sprocket can create several problems:
- Poor track engagement
- Faster chain wear
- Increased operating noise
- Reduced travel efficiency
Many buyers replace only the track chain but ignore the sprocket condition. This can shorten the service life of new parts.
3. Track Rollers
Track rollers support the weight of the excavator.
They are installed underneath the track frame and directly contact the track chain.
Main functions:
- Support machine weight
- Guide track movement
- Reduce vibration
- Improve travel stability
Different working environments require different roller designs.
For example:
| Working Condition | Recommended Solution |
|---|---|
| General construction | Standard track rollers |
| Mining operation | Heavy-duty rollers |
| Rocky terrain | High impact resistance rollers |
| Long working hours | Premium sealed rollers |
4. Carrier Rollers
Carrier rollers support the upper section of the track chain.
Their main purpose is to prevent excessive track sag and keep the chain moving smoothly.
A damaged carrier roller may cause:
- Uneven chain movement
- Increased vibration
- Abnormal wear
5. Front Idler
The idler is located at the front of the excavator undercarriage.
It works together with the track adjuster assembly to maintain proper track tension.
The idler helps:
- Guide track chain movement
- Maintain alignment
- Reduce chain vibration
6. Track Adjuster Assembly
The track adjuster assembly controls track chain tension.
It normally includes:
- Hydraulic cylinder
- Grease chamber
- Yoke
- Recoil spring
Correct track tension is very important.
If the track is too loose:
- The chain may come off.
- Components wear faster.
- Machine stability decreases.
If the track is too tight:
- Roller and sprocket wear increases.
- Travel resistance increases.
- Fuel consumption may increase.
How Does Power Transfer Through an Excavator Track?
The working process is simple:
| Step | Component | Function |
|---|---|---|
| 1 | Hydraulic motor | Creates rotation power |
| 2 | Sprocket | Transfers power to track chain |
| 3 | Track chain | Converts rotation into movement |
| 4 | Track rollers | Support machine weight |
| 5 | Track shoes | Contact the ground |
This system allows excavators to generate strong pushing force and operate in difficult environments.
What Materials Are Excavator Track Chains Made From?
Material quality directly affects excavator undercarriage service life.
Professional manufacturers usually use alloy steel because it provides:
- High strength
- Good impact resistance
- Wear resistance
- Long operating life
Common manufacturing processes include:
- Steel forging
- Heat treatment
- CNC machining
- Assembly
- Quality inspection
Image suggestion: Heat treatment process for excavator track chain components.
Material Comparison: Standard Steel vs Heat-Treated Alloy Steel
| Feature | Standard Steel | Heat-Treated Alloy Steel |
|---|---|---|
| Wear resistance | Medium | High |
| Impact resistance | Limited | Excellent |
| Service life | Shorter | Longer |
| Heavy-duty application | Not recommended | Recommended |
| Mining operation | Limited | Suitable |
From our manufacturing experience, proper heat treatment is one of the most important factors affecting undercarriage part performance.
OEM vs Aftermarket Excavator Track Chains
Many buyers ask whether aftermarket excavator undercarriage parts are reliable.
The answer depends on the manufacturer’s production capability and quality control.
| Item | OEM Parts | Professional Aftermarket Parts |
|---|---|---|
| Machine compatibility | Excellent | Excellent when specifications match |
| Price | Higher | More competitive |
| Availability | Depends on dealer stock | Usually faster |
| Custom options | Limited | Flexible |
| Support | Dealer network | Factory support |
A professional aftermarket manufacturer should provide:
- Accurate dimensions
- Material information
- Quality inspection
- Warranty support
- Technical assistance
How to Choose the Right Excavator Track Chain?
Before purchasing, I recommend buyers prepare the following information:
1. Confirm Machine Model
Always provide:
- Excavator brand
- Machine model
- Serial number if available
Different machines may use different:
- Pitch sizes
- Link quantities
- Shoe widths
- Roller specifications
2. Check Working Conditions
The correct track chain depends on application.
| Application | Recommended Track Solution |
|---|---|
| Construction | Standard track chain |
| Mining | Heavy-duty track chain |
| Quarry | Reinforced undercarriage parts |
| Rental fleet | Durable aftermarket parts |
3. Compare Supplier Capability
A reliable supplier should provide:
✓ Factory information
✓ Product drawings
✓ Material details
✓ Quality inspection records
✓ Warranty terms
✓ Export experience
Common Mistakes When Buying Excavator Tracks
Choosing Only Based on Price
The cheapest product is not always the lowest cost.
A low-quality track chain may cause:
- Short replacement cycles
- More downtime
- Higher maintenance costs
Ignoring Matching Components
Replacing only one worn component can create uneven wear.
For example:
Installing a new track chain with an old worn sprocket may reduce the new chain’s service life.
Not Confirming Specifications
Before ordering, buyers should confirm:
- Track pitch
- Number of links
- Shoe width
- Machine model
- Working condition
Expert Tips: How to Extend Excavator Track Life
Based on our export experience, I recommend:
Maintain Correct Track Tension
Check track tension regularly according to working conditions.
Clean Undercarriage Frequently
Mud and stones can accelerate wear.
Cleaning the undercarriage helps:
- Reduce stress
- Improve inspection accuracy
- Extend component life
Inspect Wear Parts Together
Check:
- Track chain
- Sprocket
- Rollers
- Idler
A complete inspection provides better maintenance planning.
Excavator Track Maintenance Schedule
| Maintenance Item | Recommended Frequency |
|---|---|
| Check track tension | Daily or weekly depending on working condition |
| Clean undercarriage | Regularly after operation |
| Inspect rollers | During routine maintenance |
| Check sprocket wear | During track inspection |
| Replace worn components | Before serious damage occurs |
Case Study: Supplying Excavator Undercarriage Parts for Overseas Customers
During our export experience, many customers initially focused only on track chain price.
After technical discussion, we found that some machines also required sprocket and roller inspection.
By checking the complete undercarriage system, customers avoided premature wear after installation and achieved better service performance.
This is why we always recommend checking the complete system instead of replacing only one component.
Excavator Track Chain Buying Checklist
Before placing an order, buyers can check:
☐ Machine model confirmed
☐ Track chain specifications confirmed
☐ Link quantity confirmed
☐ Shoe width confirmed
☐ Working condition discussed
☐ Material quality confirmed
☐ Heat treatment process confirmed
☐ Warranty terms confirmed
☐ Packaging method confirmed
☐ Shipping plan confirmed
Frequently Asked Questions
How long does an excavator track chain last?
The service life depends on machine size, working environment, maintenance, and product quality. Mining applications usually create higher wear than normal construction work.
Why does my excavator track become loose?
Track looseness usually happens because of wear, insufficient tension adjustment, or problems with the track adjuster assembly.
Should I replace the sprocket with the track chain?
In many cases, checking sprocket wear is recommended. A severely worn sprocket can reduce the service life of a new track chain.
Are aftermarket excavator track chains reliable?
Professional aftermarket parts can provide excellent performance when they are manufactured with proper materials, heat treatment, and quality control.
What information should I provide when requesting a quotation?
I recommend providing:
- Machine model
- Part number if available
- Track specifications
- Required quantity
- Working environment
This helps suppliers provide accurate recommendations.
Conclusion
Excavator chain tracks transfer hydraulic power into machine movement through a complete undercarriage system. Choosing quality track chains, rollers, sprockets, and related parts helps improve reliability and reduce operating costs.
